Architectural
AR1022

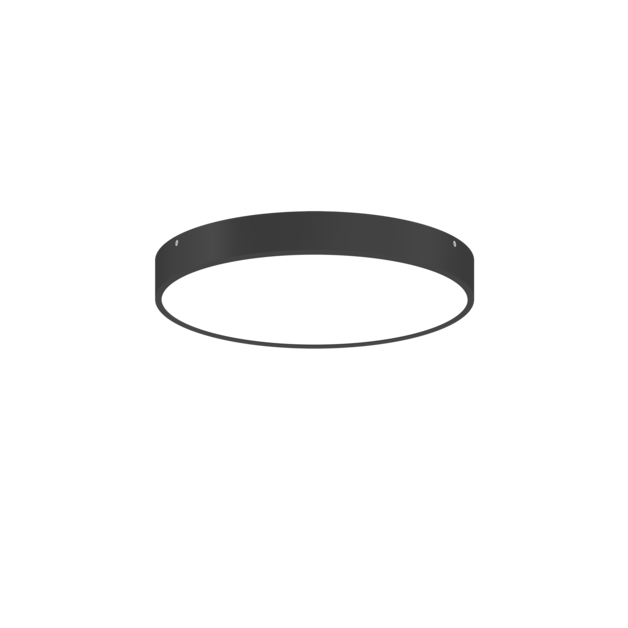

AR1022 — Architectural Ring The AR1022 is a architectural ring style LED luminaire, supplied complete with 1450 - 4650 lm at ~100 lm/W (estimated), available...
IP20
MOUNTSurface, Suspended, Recessed
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
AR1022.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification AR1022
Construction
| Type | Architectural Ring |
|---|---|
| Installation | Surface, Suspended, Recessed |
| Housing Material | Aluminium |
| Finishes | White, Black, Grey |
Photometric
| Luminous Flux | 1450 - 4650 lm |
|---|---|
| Efficacy | ~100 lm/W (estimated) |
| Colour Rendering | CRI80, CRI90 |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Wide, Direct |
| Light Distribution | Direct |
| MacAdam | 3 SDCM |
Electrical
| Voltage | 220-240V AC |
|---|---|
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | Class I |
| Certification | CE Marked |
| L80B10 Lifetime | 100,000 hrs |
| L90B10 Lifetime | 75,000 hrs |
Optic Options
| Available Optics | Opal, Frosted |
|---|
