Bulkhead
BH1007

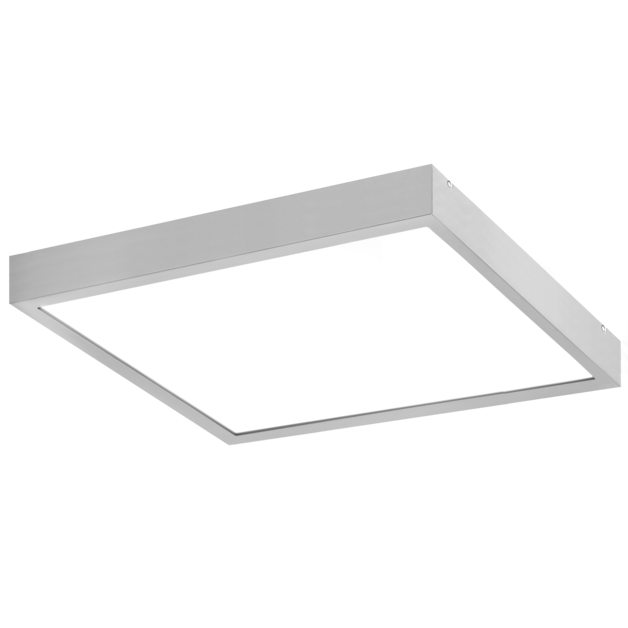

BH1007 — Bulkhead The BH1007 is a bulkhead style LED luminaire (nominal 307 x 407 x 595mm), supplied complete with 43 W, 4130 - 4525 lm at 94-139 lm/W, avail...
DIM307/407/595 sq x 65 mm
CUTOUTN/A
IP20
MOUNTSurface
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
BH1007.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification BH1007
Construction
| Type | Bulkhead |
|---|---|
| Installation | Surface |
| Housing Material | Aluminum |
| Finishes | Black, Grey, White |
| Dimensions | 307/407/595 sq x 65 mm |
| Cutout | N/A |
| Weight | 3.2 - 4.3 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 4130 - 4525 lm |
| Efficacy | 94-139 lm/W |
| Colour Rendering | 80 |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Wide Beam |
| Light Distribution | DI |
| MacAdam | SDCM 3 |
Electrical
| Power Range | 43 W |
|---|---|
| Voltage | 220 ... 240 V |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | Class I |
| Certification | yes |
| L80B10 Lifetime | 100.000 h |
| L90B10 Lifetime | 64.000 h |
Optic Options
| Available Optics | OPAL |
|---|
Technical Downloads
