Downlight
DL1001

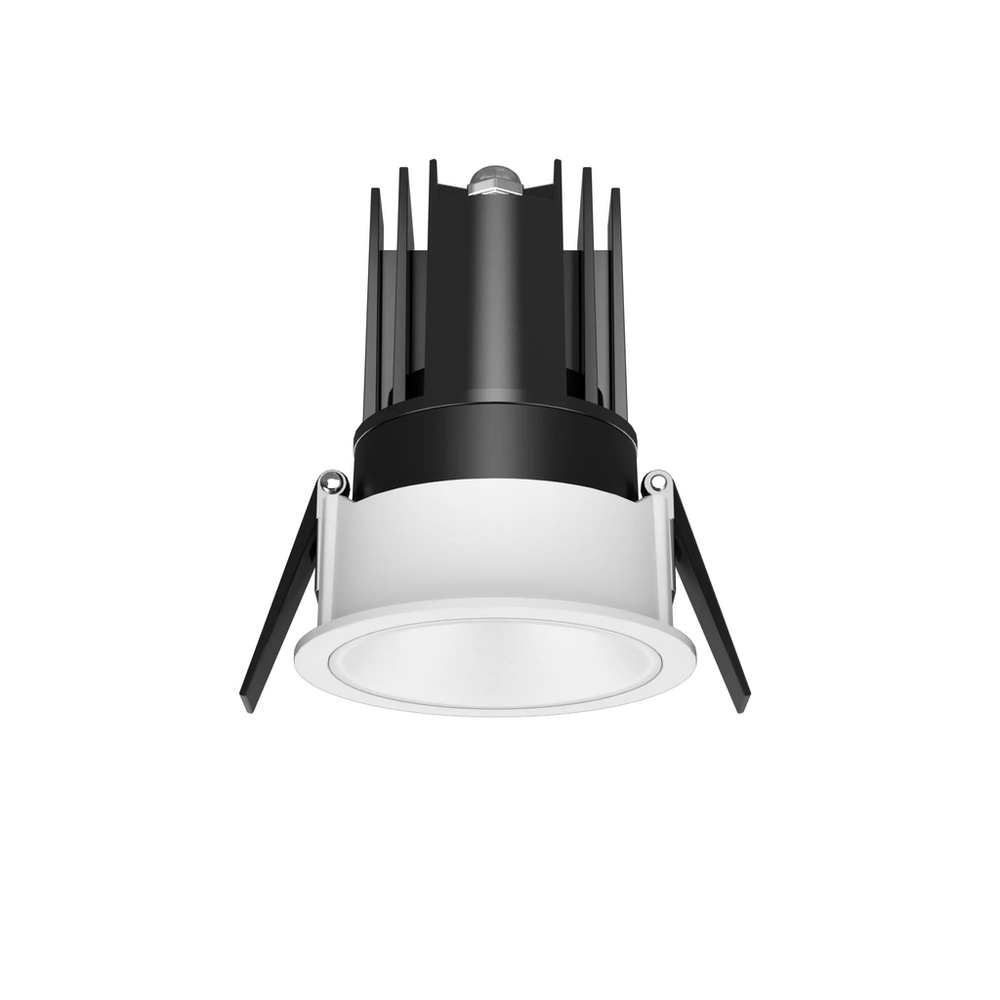

DL1001 — Downlight The DL1001 is a downlight style LED luminaire (nominal 82 x 105mm), supplied complete with 9W-18W, 680 - 1850 lm at ~102 lm/W, available i...
DIM82mm(D) x 105mm(H)
CUTOUT75mm
IP40
MOUNTRecessed
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
DL1001.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification DL1001
Construction
| Type | Downlight |
|---|---|
| Installation | Recessed |
| Housing Material | Die-Cast Aluminium |
| Finishes | White, Black, Grey, Anthracite, Stainless Steel |
| Dimensions | 82mm(D) x 105mm(H) |
| Cutout | 75mm |
| Weight | 0.35 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 680 - 1850 lm |
| Efficacy | ~102 lm/W |
| Colour Rendering | CRI80, CRI90, CRI95+ |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | 15, 24, 36, 60, Wall Wash |
| Light Distribution | Direct |
| MacAdam | 3 SDCM |
Electrical
| Power Range | 9W - 18W |
|---|---|
| Voltage | 220-240V AC |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-5% |
Compliance & Lifetime
| Ingress Protection | IP40 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | Class II |
| Certification | CE Marked |
| L80B10 Lifetime | 60,000 hrs |
| L90B10 Lifetime | 40,000 hrs |
Optic Options
| Available Optics | Aluminium Reflector, Black Matt Reflector, Silver Matt Reflector, White Matt Reflector |
|---|
