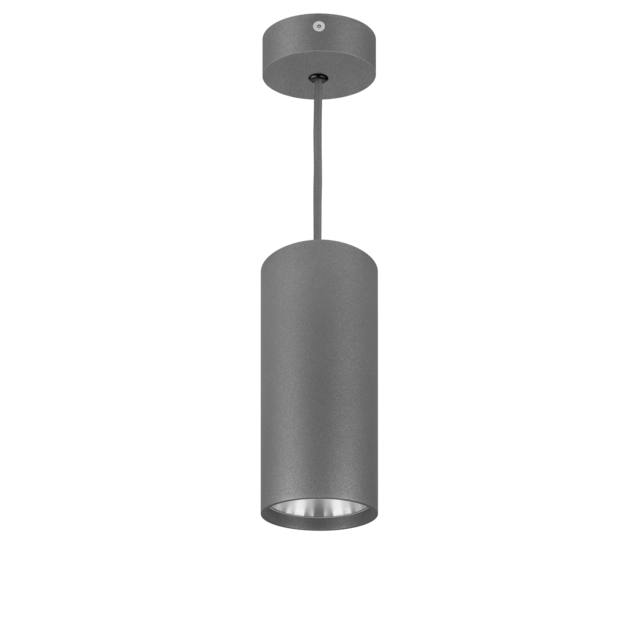

Downlight
DL1107
DL1107 — Downlight The DL1107 is a downlight style LED luminaire, supplied complete with 15-29 W, 1160 - 2640 lm at 72 - 98 lm/W, available in 3000K / 4000K,...
IP20
MOUNTSuspended
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
DL1107.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification DL1107
Construction
| Type | Downlight |
|---|---|
| Installation | Suspended |
| Housing Material | Aluminium |
| Finishes | Anthracite, Black, Grey, White |
| Dimensions | See datasheet |
| Cutout | See datasheet |
| Weight | 1 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 1160 - 2640 lm |
| Efficacy | 72 - 98 lm/W |
| Colour Rendering | 80, 90 |
| Colour Temperature | 3000K, 4000K |
| Beam Distribution | 30, 50, 70 deg |
| Light Distribution | DI |
| MacAdam | SDCM 3 |
Electrical
| Power Range | 15 - 29 W |
|---|---|
| Voltage | 220 ... 240 V |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | I |
| Certification | yes |
| L80B10 Lifetime | 100,000 hrs |
| L90B10 Lifetime | 75,000 hrs |
Optic Options
| Available Optics | RF |
|---|
