Linear System
LS1030

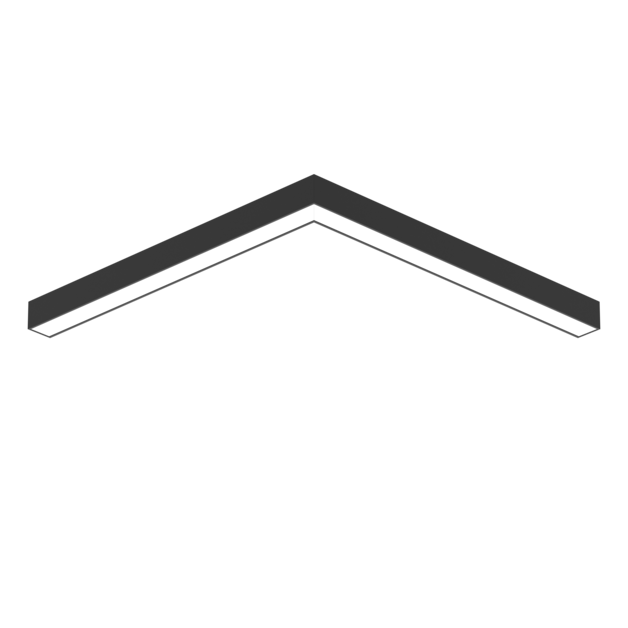

LS1030 — Linear System The LS1030 is a linear system style LED luminaire, supplied complete with 9-17 W, 400 - 960 lm at 93-111 lm/W, available in 3000K / 40...
IP20
MOUNTCeiling, Suspended, Wall
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
LS1030.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification LS1030
Construction
| Type | Linear System |
|---|---|
| Installation | Ceiling, Suspended, Wall |
| Housing Material | Aluminum |
| Finishes | Black, Grey, White |
| Dimensions | See datasheet |
| Cutout | See datasheet |
| Weight | 1.9 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 400 - 960 lm |
| Efficacy | 93-111 lm/W |
| Colour Rendering | 80, 90 |
| Colour Temperature | 3000K, 4000K |
| Beam Distribution | Direct |
| Light Distribution | DI |
| MacAdam | SDCM 3 |
Electrical
| Power Range | 9 - 17 W |
|---|---|
| Voltage | 220 ... 240 V |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | I |
| Certification | yes |
| L80B10 Lifetime | 100.000 h |
| L90B10 Lifetime | 64.000 h |
Optic Options
| Available Optics | OPAL |
|---|
