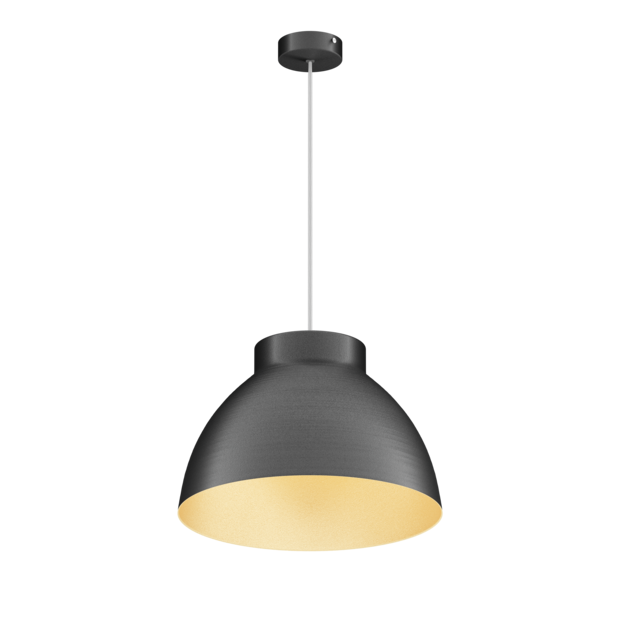

Pendant Light

PL1019

PL1019 — Pendant Light The PL1019 is a pendant style LED luminaire, supplied complete with 20W, 1750 - 2225 lm, available in 3000K / 4000K, CRI80 / 90 / 95+,...

CUTOUTN/A

IP20

MOUNTRecessed

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU PL1019.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

PL1019.00X000.00XXXX.00

Guide pricing

POA

Technical Specification PL1019

Construction

Type	Pendant Light
Installation	Recessed
Housing Material	Aluminium
Finishes	White, Black, Grey
Dimensions	See datasheet
Cutout	N/A
Weight	~2.0 kg

Photometric

Light Source	LED
Luminous Flux	1750 - 2225 lm
Efficacy	See datasheet
Colour Rendering	CRI80, CRI90, CRI95+
Colour Temperature	3000K, 4000K
Beam Distribution	Direct
Light Distribution	Direct/Indirect
MacAdam	3 SDCM

Electrical

Power Range	20W
Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%

Compliance & Lifetime

Ingress Protection	IP20
Impact Resistance	IK04
Protection Class	Class I / Class II
Certification	CE Marked
L80B10 Lifetime	100,000 hrs
L90B10 Lifetime	75,000 hrs
