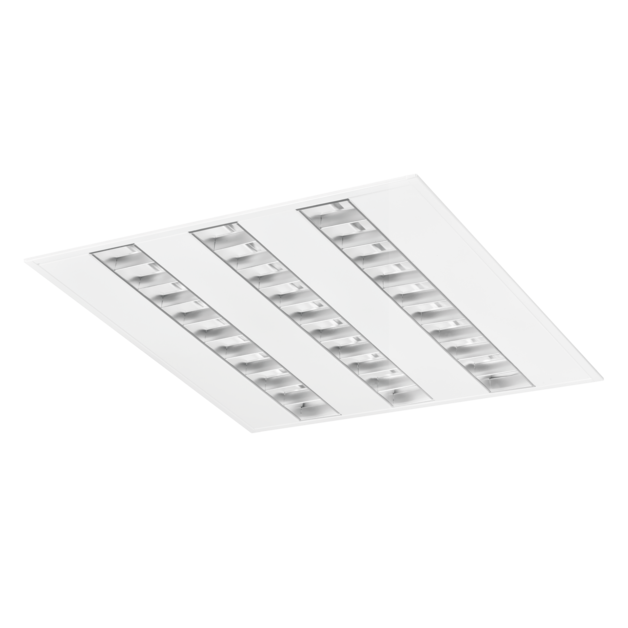

Suspended Light
SC1020
SC1020 — Suspended Ceiling Light The SC1020 is a suspended ceiling style LED luminaire, supplied complete with 14-45 W, 1450-5860 lm at 104 - 130 lm/W, avail...
CUTOUTN/A
IP20
MOUNTSurface
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
SC1020.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification SC1020
Construction
| Type | Suspended Ceiling Light |
|---|---|
| Installation | Surface |
| Housing Material | Steel sheet |
| Finishes | Black, White |
| Dimensions | See datasheet |
| Cutout | N/A |
| Weight | 3.2-3.7 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 1450-5860 lm |
| Efficacy | 104 - 130 lm/W |
| Colour Rendering | 80, 90 |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Medium Beam |
| Light Distribution | DI |
| MacAdam | SDCM 3 |
Electrical
| Power Range | 14 - 45 W |
|---|---|
| Voltage | 220 ... 240 V |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | option |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK03 |
| Protection Class | Class I |
| Certification | yes |
| L80B10 Lifetime | 100,000 hrs |
| L90B10 Lifetime | 64.000 h |
Optic Options
| Available Optics | OPAL, PAR |
|---|
Technical Downloads
