SM1200

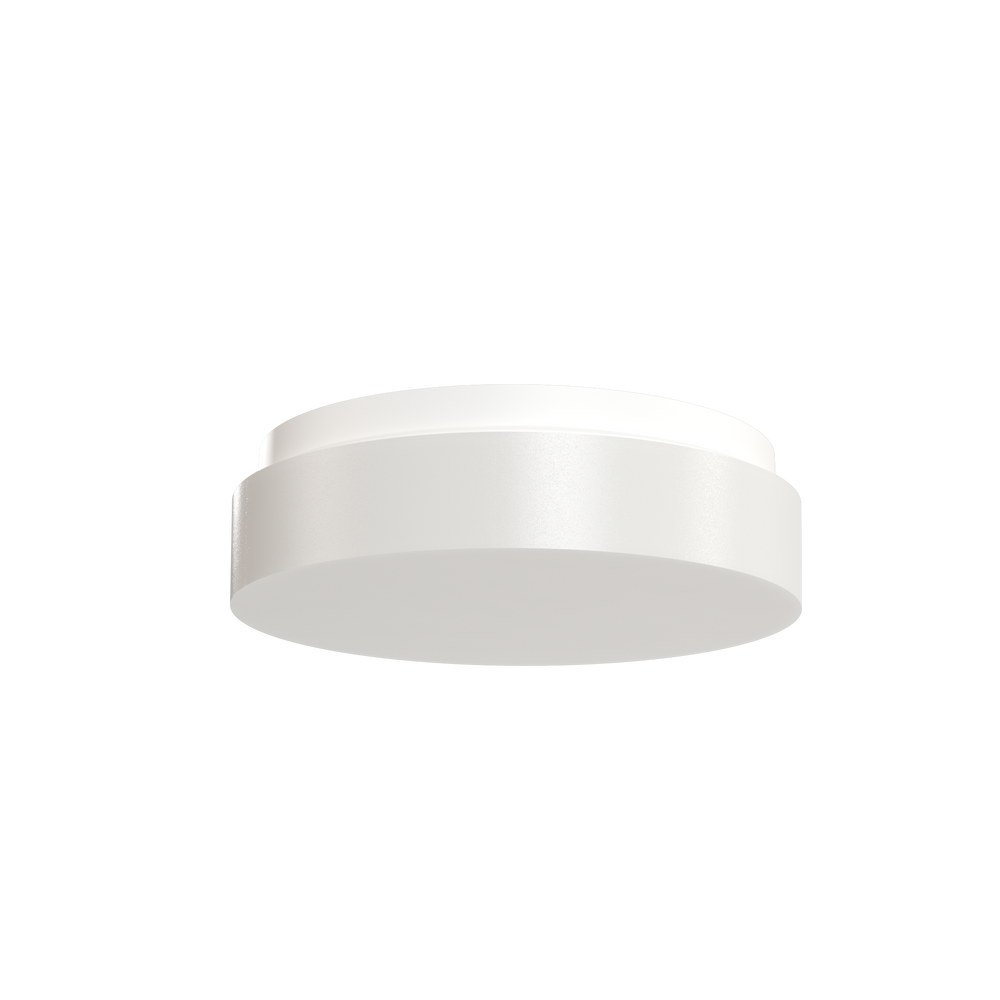

SM1200 — Surface Mounted Luminaire The SM1200 is a surface mounted style LED luminaire (nominal 280 x 280 x 125mm), supplied complete with 9-13W, 1010 - 1480...

DIMW: 280mm x L: 280mm x H: 125mm

IP44

MOUNTSurface

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU SM1200.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

SM1200.00X000.00XXXX.00

Guide pricing

POA

Technical Specification SM1200

Construction

Type	Surface Mounted Luminaire
Installation	Surface
Housing Material	Polycarbonate Body, Polycarbonate Diffuser
Finishes	Pure White
Dimensions	W: 280mm x L: 280mm x H: 125mm

Photometric

Light Source	LED
Luminous Flux	1010 - 1480 lm
Efficacy	109.2 - 117.5 lm/W
Colour Rendering	CRI80
Colour Temperature	Tunable White (2700-6500K), 3000K, 3000K/4000K Selectable, 4000K
Beam Distribution	Wide Beam
Light Distribution	Direct
MacAdam	3 SDCM

Electrical

Power Range	9 - 13W
Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%
