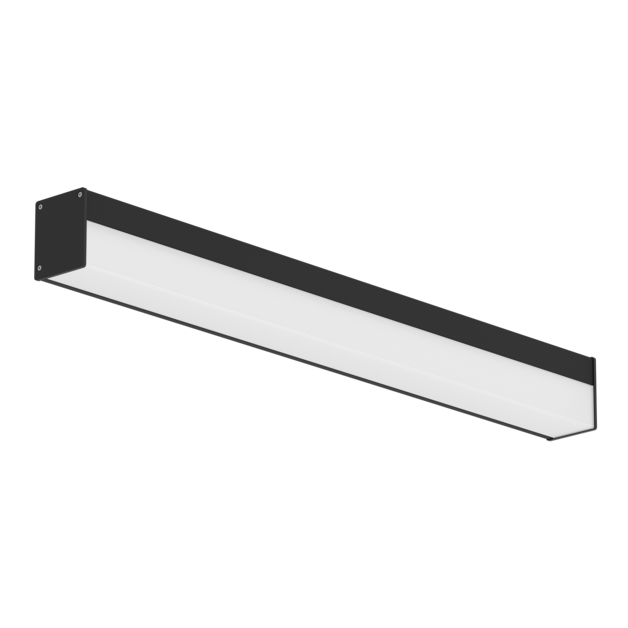

Wall Light
WL1020
WL1020 — Wall Light The WL1020 is a wall style LED luminaire, supplied complete with 11-22 W, 1150 - 2780 lm at 105 - 131 lm/W, available in 2700K - 6000K, C...
CUTOUTN/A
IP44
MOUNTWall
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
WL1020.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification WL1020
Construction
| Type | Wall Light |
|---|---|
| Installation | Wall |
| Housing Material | Aluminum |
| Finishes | Black, Grey, White |
| Dimensions | See datasheet |
| Cutout | N/A |
| Weight | 1 - 1.8 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 1150 - 2780 lm |
| Efficacy | 105 - 131 lm/W |
| Colour Rendering | 80, 90 |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Wide Beam |
| Light Distribution | DI |
| MacAdam | SDCM 3 |
Electrical
| Power Range | 11 - 22 W |
|---|---|
| Voltage | 220 ... 240 V |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP44 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | I |
| Certification | yes |
| L80B10 Lifetime | 100.000 h |
| L90B10 Lifetime | 64.000 h |
Optic Options
| Available Optics | OPAL |
|---|
Technical Downloads
Project Installations
PROJECT PHOTO
PROJECT PHOTO
PROJECT PHOTO
