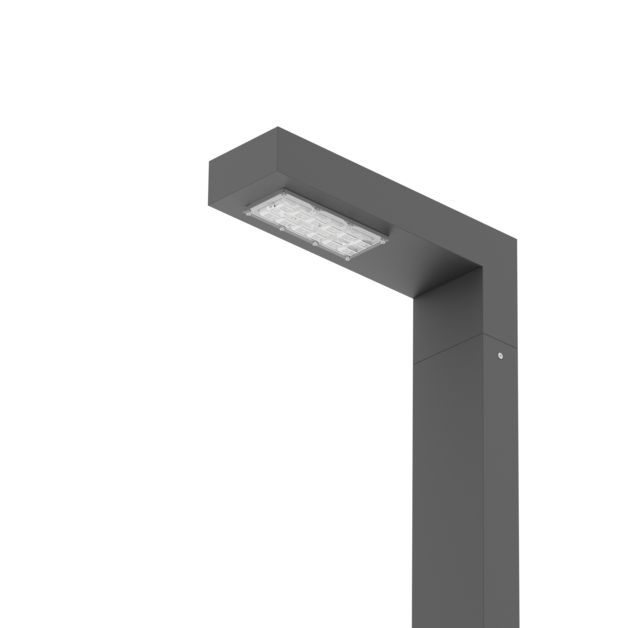

Exterior Bollard

XB1009

XB1009 — Exterior Bollard The XB1009 is a exterior bollard style LED luminaire (nominal 100 x 100 x 600mm), supplied complete with 75W, 2140 - 7620 lm at 84-...

DIM100 x 100 x 600/900 mm

CUTOUTN/A

IP65

MOUNTIn-Ground Post

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU XB1009.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

XB1009.00X000.00XXXX.00

Guide pricing

POA

Technical Specification XB1009

Construction

Type	Exterior Bollard
Installation	In-Ground Post
Housing Material	Aluminium
Finishes	White, Black, Grey
Dimensions	100 x 100 x 600/900 mm
Cutout	N/A
Weight	~5.0 kg

Photometric

Light Source	LED
Luminous Flux	2140 - 7620 lm
Efficacy	84-93 lm/W
Colour Rendering	CRI80, CRI90, CRI95+
Colour Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Beam Distribution	Medium Beam
Light Distribution	Omni-Directional
MacAdam	3 SDCM

Electrical

Power Range	75W
Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%
