AR1001

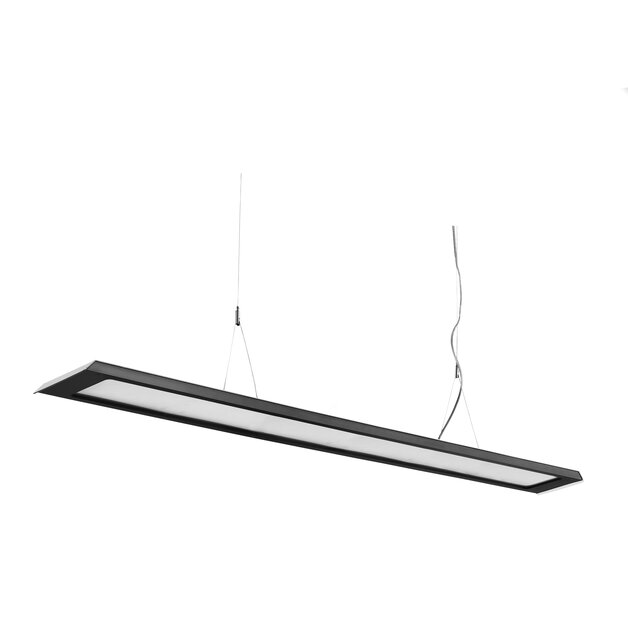

AR1001 — Architectural Linear The AR1001 is a architectural linear style LED luminaire (nominal 1240 x 1740 x 155mm), supplied complete with 27W-51W, 2900 - ...
DIM1240-1740(L) x 155(W) x 31(H) mm
IP40
MOUNTSuspended
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
AR1001.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification AR1001
Construction
| Type | Architectural Linear |
|---|---|
| Installation | Suspended |
| Housing Material | Aluminium |
| Finishes | White, Black |
| Dimensions | 1240-1740(L) x 155(W) x 31(H) mm |
| Cutout | See datasheet |
| Weight | 3.5 - 5.0 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 2900 - 6970 lm |
| Efficacy | 107 - 137 lm/W |
| Colour Rendering | CRI80, CRI90 |
| Colour Temperature | 3000K, 4000K |
| Beam Distribution | Medium Beam |
| Light Distribution | Direct |
| MacAdam | 3 SDCM |
Electrical
| Power Range | 27W - 51W |
|---|---|
| Voltage | 220-240V AC |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP40 |
|---|---|
| Impact Resistance | IK06 |
| Protection Class | Class I |
| Certification | CE Marked |
| L80B10 Lifetime | 100,000 hrs |
| L90B10 Lifetime | 75,000 hrs |
Optic Options
| Available Optics | - |
|---|
