Architectural

AR1008

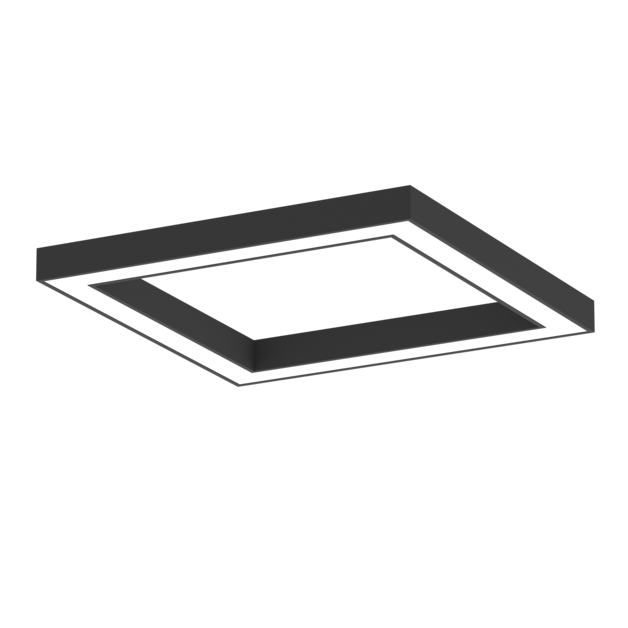

AR1008 — Architectural Ring The AR1008 is a architectural ring style LED luminaire (nominal 680 x 980 x 680mm), supplied complete with 35-90 W, 3210-8650 lm ...

DIM680/980 x 680/980 x 62 mm

IP40

MOUNTSuspended

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU AR1008.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

AR1008.00X000.00XXXX.00

Guide pricing

POA

Technical Specification AR1008

Construction

Type	Architectural Ring
Installation	Suspended
Housing Material	Aluminium
Finishes	Black, Grey, White
Dimensions	680/980 x 680/980 x 62 mm
Cutout	See datasheet
Weight	5.5-11.0 kg

Photometric

Light Source	LED
Luminous Flux	3210-8650 lm
Efficacy	80-113 lm/W
Colour Rendering	CRI80, CRI90
Colour Temperature	3000K, 4000K
Beam Distribution	Direct
Light Distribution	DI
MacAdam	SDCM 3

Electrical

Power Range	35 - 90 W
Voltage	220 ... 240 V
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%
