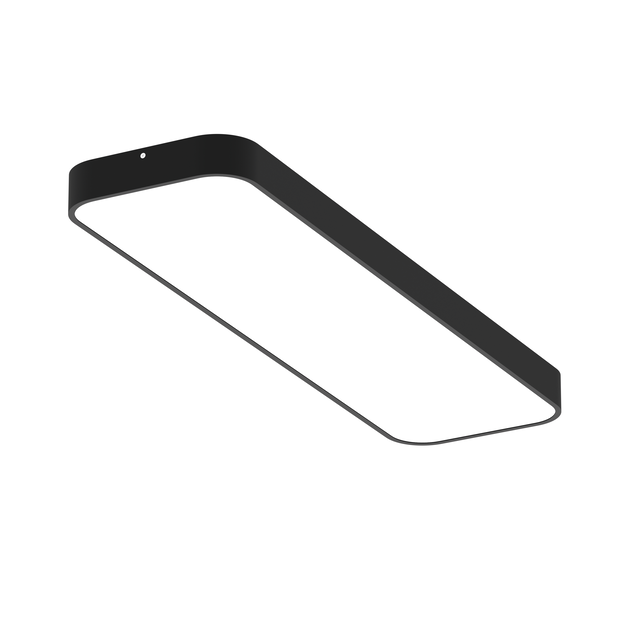

AR1011 — Architectural Ring The AR1011 is a architectural ring style LED luminaire (nominal 1100 x 300 x 65mm), supplied complete with 45W, 3470 - 4630 lm at...
DIM1100 x 300 x 65 mm
IP20
MOUNTRecessed
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
AR1011.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification AR1011
Construction
| Type | Architectural Ring |
|---|---|
| Installation | Recessed |
| Housing Material | Aluminium |
| Finishes | White, Black, Grey |
| Dimensions | 1100 x 300 x 65 mm |
| Cutout | See datasheet |
| Weight | ~1.0 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 3470 - 4630 lm |
| Efficacy | 104-113 lm/W |
| Colour Rendering | CRI80, CRI90, CRI95+ |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | 15°, 24°, 36° |
| Light Distribution | Direct |
| MacAdam | 3 SDCM |
Electrical
| Power Range | 45W |
|---|---|
| Voltage | 220-240V AC |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | Class I |
| Certification | CE Marked |
| L80B10 Lifetime | 100,000 hrs |
| L90B10 Lifetime | 75,000 hrs |
Optic Options
| Available Optics | - |
|---|
