Linear System
LS1003

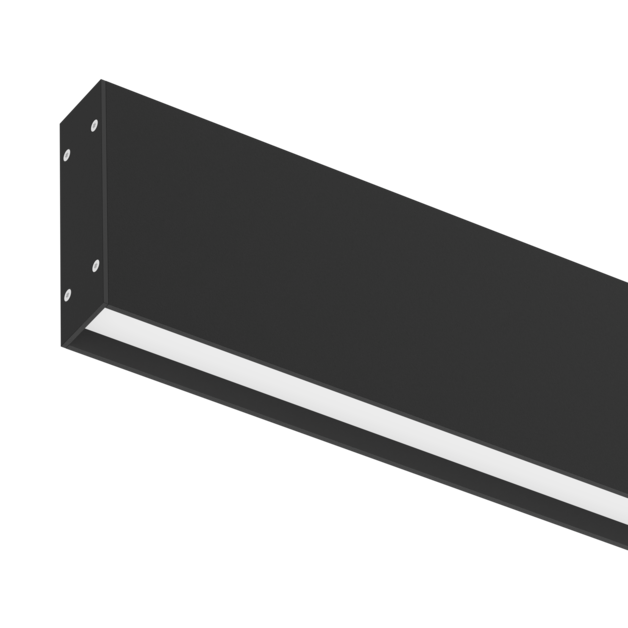

LS1003 — Linear System The LS1003 is a linear system style LED luminaire, supplied complete with 14-97 W, 630 - 5370 lm at 71 - 110 lm/W, available in 2700K ...
IP20
MOUNTRecessed, Surface, Suspended
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
LS1003.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification LS1003
Construction
| Type | Linear System |
|---|---|
| Installation | Recessed, Surface, Suspended |
| Housing Material | Aluminum |
| Finishes | Black, Grey, White |
| Dimensions | See datasheet |
| Cutout | See datasheet |
| Weight | 0.85 - 4 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 630 - 5370 lm |
| Efficacy | 71 - 110 lm/W |
| Colour Rendering | 80, 90 |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Wide Beam |
| Light Distribution | DI/IN |
| MacAdam | SDCM 3 |
Electrical
| Power Range | 14 - 97 W |
|---|---|
| Voltage | 220 ... 240 V |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | I |
| Certification | yes |
| L80B10 Lifetime | 100.000 h |
| L90B10 Lifetime | 64.000 h |
Optic Options
| Available Optics | OPAL, mPARB, mPARM, mPARW |
|---|
