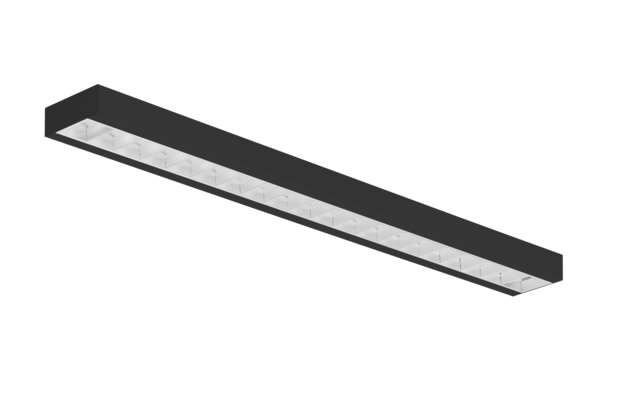

Linear System

LS1008

LS1008 Surface LinearEvery option below carries its own EMPRICS code. Quote the code for an exact specification, or call T: +44 (0) 330 174 4444 for project ...

IP20

MOUNTRecessed, Surface, Suspended

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU LS1008.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

LS1008.00X000.00XXXX.00

Guide pricing

POA

Technical Specification LS1008

Construction

Type	Linear System
Installation	Recessed, Surface, Suspended
Housing Material	Steel sheet
Finishes	Black, Grey, White
Dimensions	See datasheet
Cutout	See datasheet
Weight	2 - 3 kg

Photometric

Light Source	LED
Luminous Flux	2815 - 4830 lm
Efficacy	91 - 130 lm/W
Colour Rendering	80, 90
Colour Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Beam Distribution	Medium Beam
Light Distribution	DI
MacAdam	SDCM 3

Electrical

Power Range	30 - 38 W
Voltage	220 ... 240 V
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	option
Flux Tolerance	+/-10%

Compliance & Lifetime

Ingress Protection	IP20
Impact Resistance	IK03, IK04
Protection Class	I
Certification	yes
L80B10 Lifetime	100.000 h
L90B10 Lifetime	64.000 h

Optic Options

Available Optics	MPOP, MPRM, OPAL, PAR

Technical Downloads

Product Datasheet

PDF

Project Installations

PROJECT PHOTO

Configure your code

Choose each option to build a valid product code. Copy the code and description into your specification, download the photometric file, or send the code for a quotation.

Loading the configurator…
