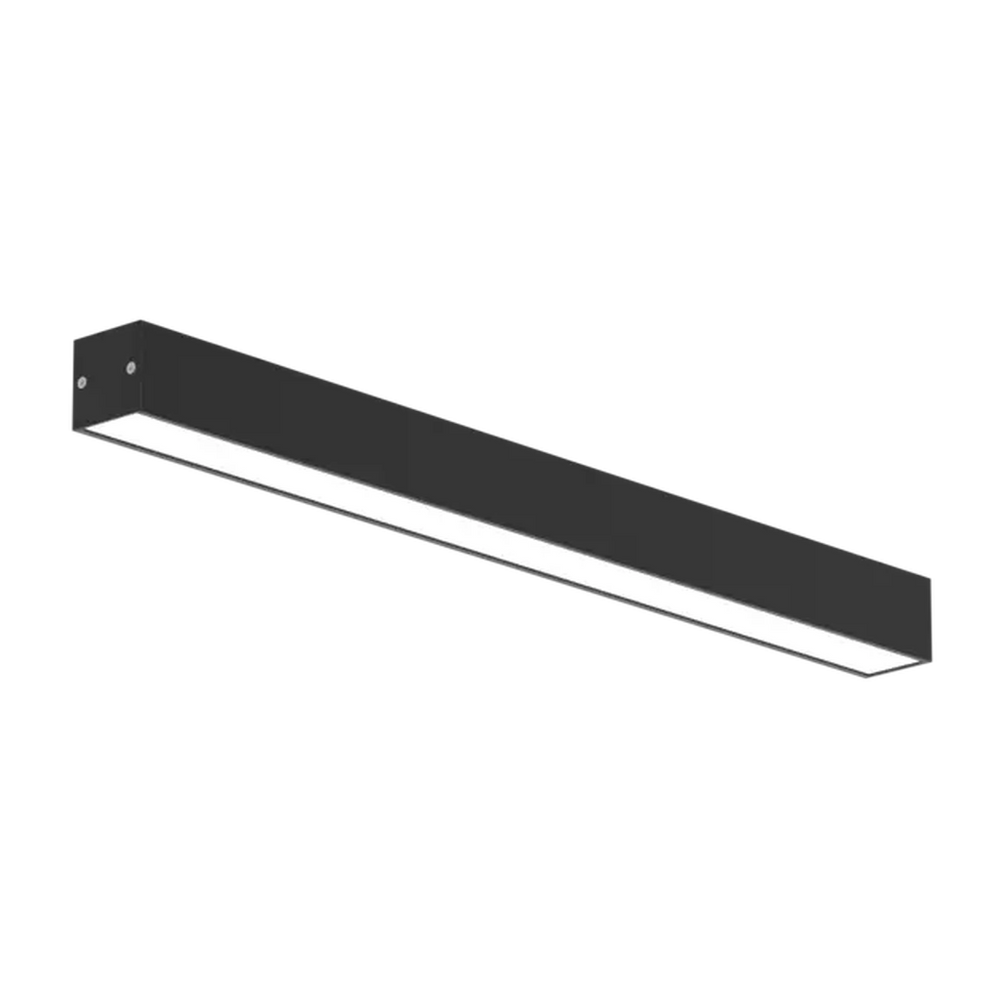

Linear System

LS1035

LS1035 Surface or Suspended LinearEvery option below carries its own EMPRICS code. Quote the code for an exact specification, or call T: +44 (0) 330 174 4444...

IP20

MOUNTSuspended

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU LS1035.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

LS1035.00X000.00XXXX.00

Guide pricing

POA

Technical Specification LS1035

Construction

Type	Linear System
Installation	Suspended
Housing Material	Steel
Finishes	White, Black, Grey

Photometric

Light Source	LED
Colour Rendering	CRI80, CRI90, CRI95+
Colour Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Beam Distribution	Medium Beam
MacAdam	3 SDCM

Electrical

Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless

Compliance & Lifetime

Ingress Protection	IP20
Protection Class	Class I
L80B10 Lifetime	50,000 hrs

Optic Options

Available Optics	Opal, Microprismatic, Clear

Technical Downloads

Project Installations

PROJECT PHOTO

Configure your code

Choose each option to build a valid product code. Copy the code and description into your specification, download the photometric file, or send the code for a quotation.
