Suspended Light

SC1013

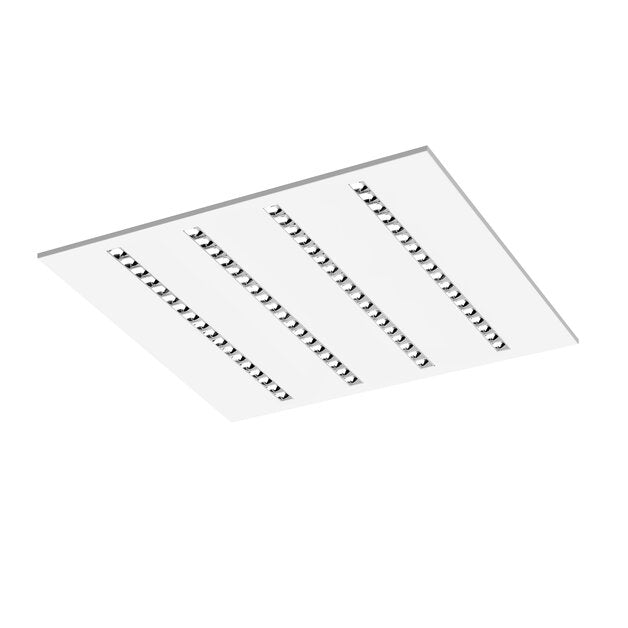

SC1013 — Suspended Ceiling Light The SC1013 is a suspended ceiling style LED luminaire, supplied complete with 45W, 1220 - 4600 lm at ~100 lm/W (estimated), ...

CUTOUTN/A

IP20

MOUNTSurface

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU SC1013.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

SC1013.00X000.00XXXX.00

Guide pricing

POA

Technical Specification SC1013

Construction

Type	Suspended Ceiling Light
Installation	Surface
Housing Material	Aluminium
Finishes	White, Black, Grey
Dimensions	See datasheet
Cutout	N/A
Weight	4.5-5.5 kg

Photometric

Light Source	LED
Luminous Flux	1220 - 4600 lm
Efficacy	~100 lm/W (estimated)
Colour Rendering	CRI80, CRI90, CRI95+
Colour Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Beam Distribution	Direct
Light Distribution	Direct
MacAdam	3 SDCM

Electrical

Power Range	45W
Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%

Compliance & Lifetime

Ingress Protection	IP20
Impact Resistance	IK04
Protection Class	Class I / Class II
Certification	CE Marked
L80B10 Lifetime	100,000 hrs
L90B10 Lifetime	64,000 hrs
