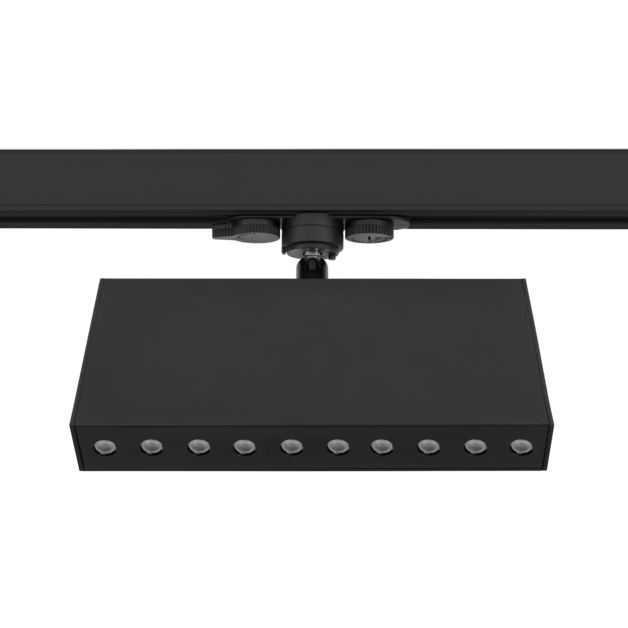

Track Spot

TS1008

TS1008 Track Linear SpotlightEvery option below carries its own EMPRICS code. Quote the code for an exact specification, or call T: +44 (0) 330 174 4444 for ...

CUTOUTN/A

IP20

MOUNTTrack

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU TS1008.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

TS1008.00X000.00XXXX.00

Guide pricing

POA

Technical Specification TS1008

Construction

Type	Track Spot
Installation	Track
Housing Material	Aluminium
Finishes	White, Black, Grey
Dimensions	See datasheet
Cutout	N/A
Weight	0.7 kg

Photometric

Light Source	LED
Luminous Flux	1520-2700 lm
Efficacy	83-100 lm/W
Colour Rendering	CRI80, CRI90, CRI95+
Colour Temperature	3000K, 4000K
Beam Distribution	30 deg
Light Distribution	Direct
MacAdam	3 SDCM

Electrical

Power Range	25W
Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%

Compliance & Lifetime

Ingress Protection	IP20
Impact Resistance	IK04
Protection Class	Class I / Class II
Certification	CE Marked
L80B10 Lifetime	100,000 hrs
L90B10 Lifetime	75,000 hrs

Optic Options

Available Optics	Reflector
