Exterior Post

XP1002

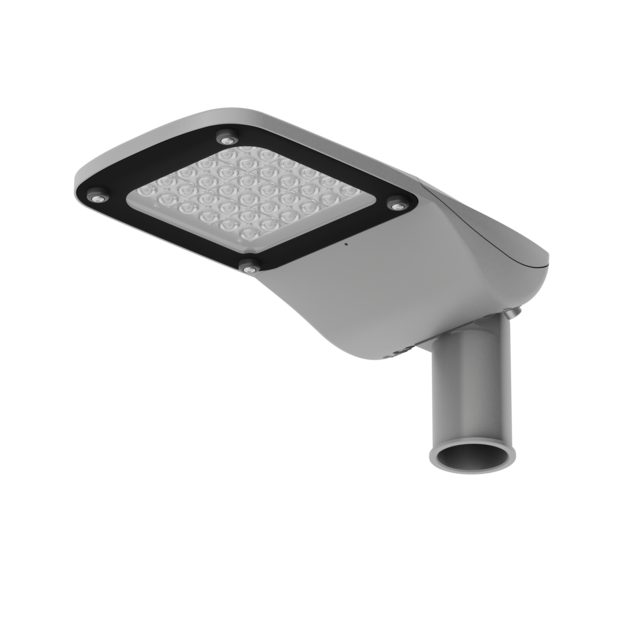

XP1002 Post-Top StreetA post-top street luminaire, 548 × 230 × 126 mm, rated IP65 and IK08, with street, asymmetric and pedestrian crossing distributions. 18...

CUTOUTN/A

IP65

MOUNTPost-Top

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU XP1002.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

XP1002.00X000.00XXXX.00

Guide pricing

POA

Technical Specification XP1002

Construction

Type	Exterior Post
Installation	Post-Top
Housing Material	Aluminium
Finishes	White, Black, Grey
Dimensions	See datasheet
Cutout	N/A
Weight	4.1 kg

Photometric

Light Source	LED
Luminous Flux	2900 - 16300 lm
Efficacy	153-182 lm/W
Colour Rendering	CRI80, CRI90, CRI95+
Colour Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Beam Distribution	Various
Light Distribution	Omni-Directional
MacAdam	3 SDCM

Electrical

Power Range	100W
Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%

Compliance & Lifetime

Ingress Protection	IP65
Impact Resistance	IK08
Protection Class	Class I
Certification	CE Marked
L80B10 Lifetime	100,000 hrs
L90B10 Lifetime	75,000 hrs

Optic Options

Available Optics	-

Technical Downloads

Product Datasheet

PDF

Project Installations

PROJECT PHOTO

Configure your code

Choose each option to build a valid product code. Copy the code and description into your specification, download the photometric file, or send the code for a quotation.

Loading the configurator…
