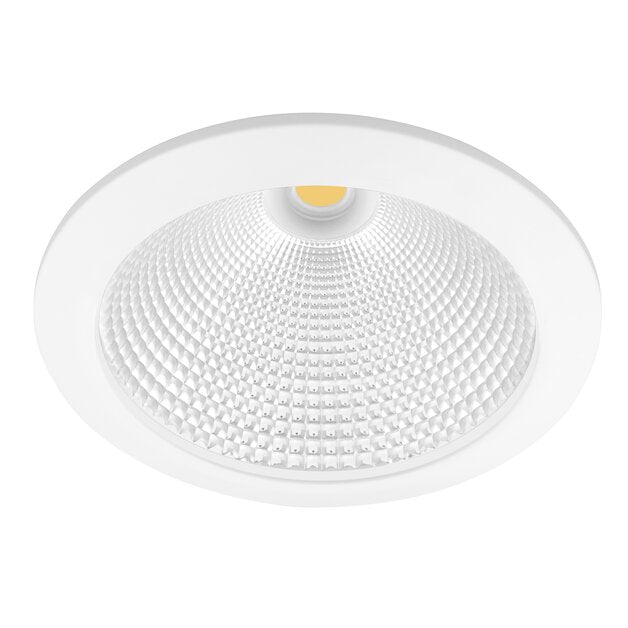

Downlight

DL1114

DL1114 — Downlight The DL1114 is a downlight style LED luminaire (nominal Ø135 x 110mm), supplied complete with 30W, 1310-2290 lm at 86-111 lm/W, available i...

DIM135 dia x 110 mm, cutout 118 mm

IP20

MOUNTRecessed

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU DL1114.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

DL1114.00X000.00XXXX.00

Guide pricing

POA

Technical Specification DL1114

Construction

Type	Downlight
Installation	Recessed
Housing Material	Aluminium
Finishes	White, Black, Grey
Dimensions	135 dia x 110 mm, cutout 118 mm
Cutout	See datasheet
Weight	1.0-1.7 kg

Photometric

Light Source	LED
Luminous Flux	1310-2290 lm
Efficacy	86-111 lm/W
Colour Rendering	CRI80, CRI90, CRI95+
Colour Temperature	3000K, 4000K
Beam Distribution	45, 55 deg
Light Distribution	Direct
MacAdam	3 SDCM

Electrical

Power Range	30W
Voltage	220-240V AC
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%

Compliance & Lifetime

Ingress Protection	IP20
Impact Resistance	IK04
Protection Class	Class I / Class II
Certification	CE Marked
L80B10 Lifetime	100,000 hrs
L90B10 Lifetime	64,000 hrs
