Suspended Light

SC1017

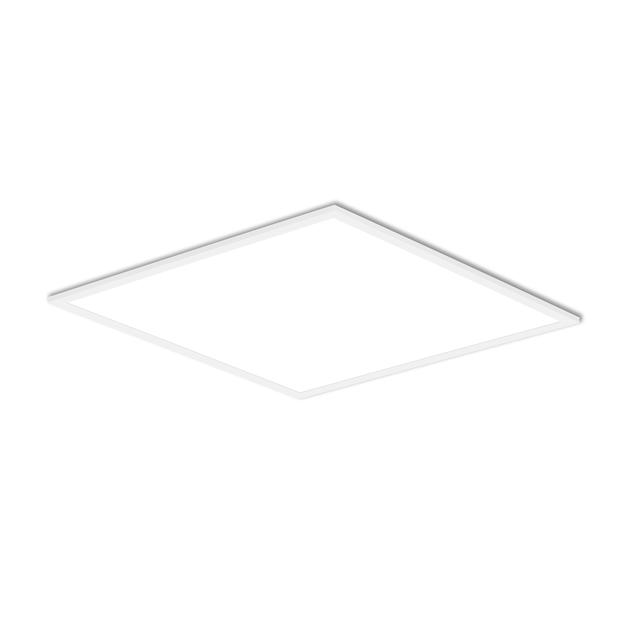

SC1017 — Suspended Ceiling Light The SC1017 is a suspended ceiling style LED luminaire (nominal 595 x 1195 x 595mm), supplied complete with 35-38 W, 3000-432...

DIM595/1195 x 595/295 x 12 mm

CUTOUTN/A

IP20

MOUNTSurface

BUILD YOUR SPECIFICATION

WATTAGE (W)

DRIVER

COLOUR RENDERING (CRI)

COLOUR TEMPERATURE (K)

BEAM ANGLE

REFLECTOR / DIFFUSER

BODY COLOUR

IP RATING

EMERGENCY

YOUR EMPRICS SKU SC1017.00X000.00XXXX.00

Select your options above to build a specification.

Download Datasheet

AVAILABLE OPTICS & ACCESSORIES

YOUR EMPRICS SKU

SC1017.00X000.00XXXX.00

Guide pricing

POA

Technical Specification SC1017

Construction

Type	Suspended Ceiling Light
Installation	Surface
Housing Material	Aluminum
Finishes	White
Dimensions	595/1195 x 595/295 x 12 mm
Cutout	N/A
Weight	1.6 kg

Photometric

Light Source	LED
Luminous Flux	3000-4320 lm
Efficacy	133 - 175 lm/W
Colour Rendering	80, 90
Colour Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Beam Distribution	Wide Beam
Light Distribution	Direct
MacAdam	SDCM 3

Electrical

Power Range	35 - 38 W
Voltage	220 ... 240 V
Control Gear	Fixed Output (F), DALI2 (D), Wireless (W)
Emergency	None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless
Flux Tolerance	+/-10%
