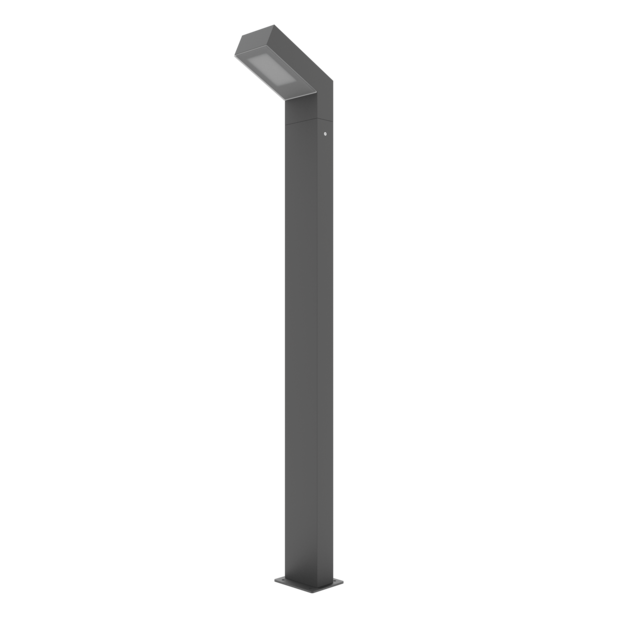

Exterior Bollard
XB1005
XB1005 — Exterior Bollard The XB1005 is a exterior bollard style LED luminaire, supplied complete with 5W, 480 - 490 lm, available in 2700K - 6000K, CRI80 / ...
CUTOUTN/A
IP65
MOUNTIn-Ground Post
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
XB1005.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification XB1005
Construction
| Type | Exterior Bollard |
|---|---|
| Installation | In-Ground Post |
| Housing Material | Aluminium |
| Finishes | White, Black, Grey |
| Dimensions | See datasheet |
| Cutout | N/A |
| Weight | ~5.0 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 480 - 490 lm |
| Efficacy | See datasheet |
| Colour Rendering | CRI80, CRI90, CRI95+ |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Medium Beam |
| Light Distribution | Omni-Directional |
| MacAdam | 3 SDCM |
Electrical
| Power Range | 5W |
|---|---|
| Voltage | 220-240V AC |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP65 |
|---|---|
| Impact Resistance | IK08 |
| Protection Class | Class II |
| Certification | CE Marked |
| L80B10 Lifetime | 100,000 hrs |
| L90B10 Lifetime | 64,000 hrs |
Optic Options
| Available Optics | - |
|---|
Technical Downloads
Project Installations
PROJECT PHOTO
PROJECT PHOTO
PROJECT PHOTO
