Exterior Post
XP1001

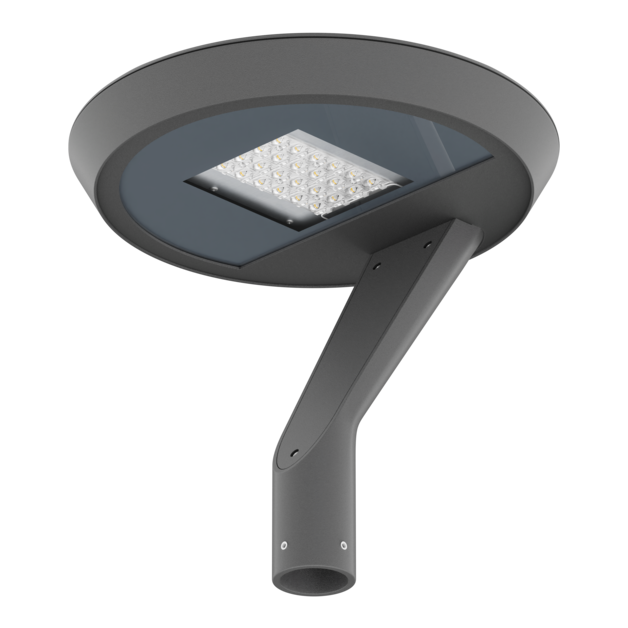

XP1001 — Exterior Post The XP1001 is a exterior post style LED luminaire (nominal Ø481 x 471mm), supplied complete with 45W, 1315 - 4470 lm at 136-163 lm/W, ...
DIM481 dia x 471 mm
CUTOUTN/A
IP65
MOUNTPost-Top
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
XP1001.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification XP1001
Construction
| Type | Exterior Post |
|---|---|
| Installation | Post-Top |
| Housing Material | Aluminium |
| Finishes | White, Black, Grey |
| Dimensions | 481 dia x 471 mm |
| Cutout | N/A |
| Weight | ~8.0 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 1315 - 4470 lm |
| Efficacy | 136-163 lm/W |
| Colour Rendering | CRI80, CRI90, CRI95+ |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Medium Beam |
| Light Distribution | Omni-Directional |
| MacAdam | 3 SDCM |
Electrical
| Power Range | 45W |
|---|---|
| Voltage | 220-240V AC |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | None, 3hr Standard, 3hr DALI2, 3hr Self-Test, 3hr Wireless |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP65 |
|---|---|
| Impact Resistance | IK08 |
| Protection Class | Class II |
| Certification | CE Marked |
| L80B10 Lifetime | 100,000 hrs |
| L90B10 Lifetime | 75,000 hrs |
Optic Options
| Available Optics | - |
|---|
