Linear System
LS1005

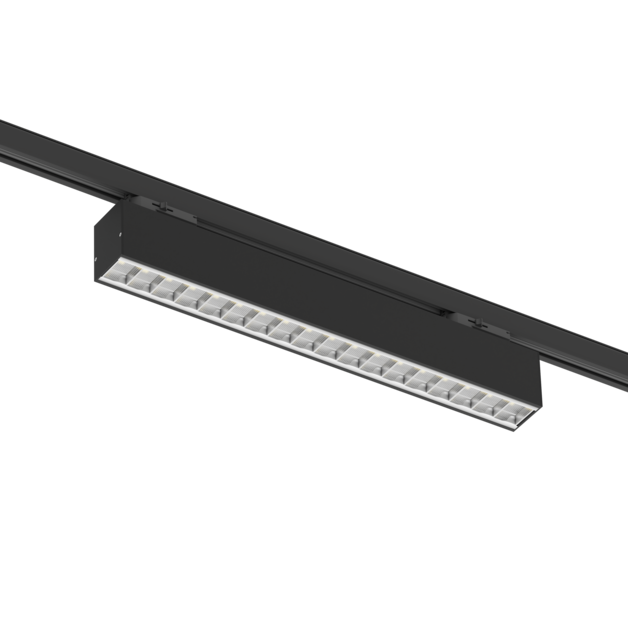

LS1005 — Linear System The LS1005 is a linear system style LED luminaire, supplied complete with 13-61 W, 1240 - 6430 lm at 95 - 136 lm/W, available in 2700K...
IP20
MOUNTRecessed, Surface, Suspended
BUILD YOUR SPECIFICATION
WATTAGE (W)
DRIVER
COLOUR RENDERING (CRI)
COLOUR TEMPERATURE (K)
BEAM ANGLE
REFLECTOR / DIFFUSER
BODY COLOUR
IP RATING
EMERGENCY
YOUR EMPRICS SKU
LS1005.00X000.00XXXX.00
Select your options above to build a specification.
AVAILABLE OPTICS & ACCESSORIES
Your quote list
Technical Specification LS1005
Construction
| Type | Linear System |
|---|---|
| Installation | Recessed, Surface, Suspended |
| Housing Material | Aluminum |
| Finishes | Anthracite RAL7016, Black, Grey, White |
| Dimensions | See datasheet |
| Cutout | See datasheet |
| Weight | 1.8 - 5.4 kg |
Photometric
| Light Source | LED |
|---|---|
| Luminous Flux | 1240 - 6430 lm |
| Efficacy | 95 - 136 lm/W |
| Colour Rendering | 80, 90 |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Beam Distribution | Medium Beam |
| Light Distribution | DI |
| MacAdam | SDCM 3 |
Electrical
| Power Range | 13 - 61 W |
|---|---|
| Voltage | 220 ... 240 V |
| Control Gear | Fixed Output (F), DALI2 (D), Wireless (W) |
| Emergency | option |
| Flux Tolerance | +/-10% |
Compliance & Lifetime
| Ingress Protection | IP20 |
|---|---|
| Impact Resistance | IK04 |
| Protection Class | I |
| Certification | yes |
| L80B10 Lifetime | 100.000 h |
| L90B10 Lifetime | 64.000 h |
Optic Options
| Available Optics | MPOP, MPRM, OPAL |
|---|
Technical Downloads
Project Installations
PROJECT PHOTO
PROJECT PHOTO
PROJECT PHOTO
